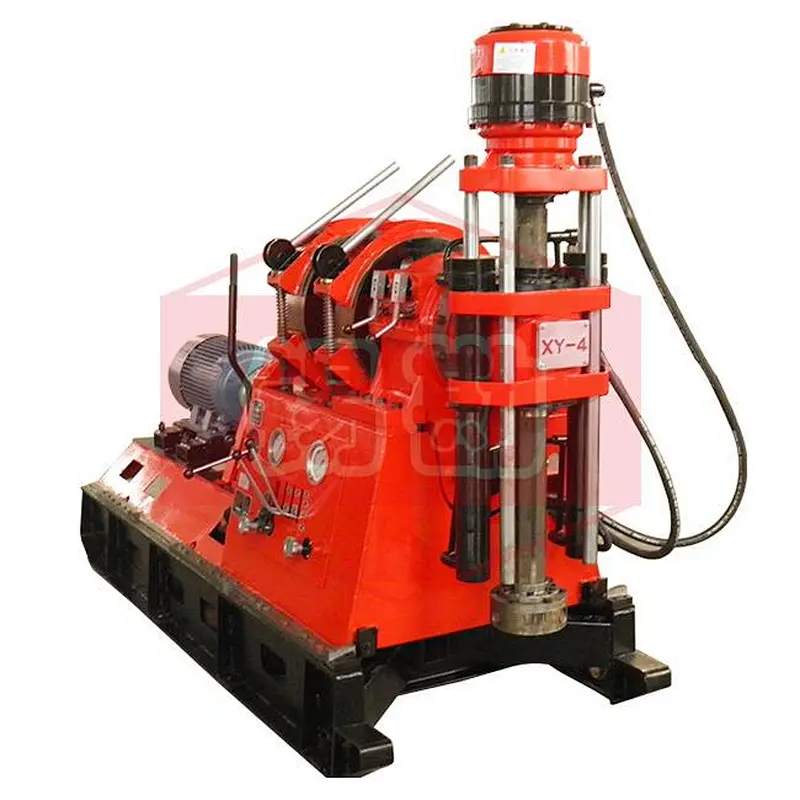

Core Drilling Rig for Petroleum Natural Gas
Core Drilling Rig for Petroleum Natural Gas

Core Drilling Rig for Petroleum Natural Gas

Model NO.
XY-4
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
100 set / Year
Country of Origin
CN
Stock Time
21 Days
Quantity:

Parameters

1. Drilling Ability

Model of drilling rod

Drill rod

Drill depth(m)

Conventional drill pipe

φ42

1000

φ50

700

2. Hole Angle (°)

0-360

3. Power Machine

Electric motor

Y225S-4

37kw

1480rpm

Diesel engine

YC4108ZD

50kw

1500rpm

4. Gyrator

Type

Double cylinder hydraulic feed mechanical rotary type

Spindle inner diameter (mm)

68

Vertical spindle speed

Forward speed (rpm)

101, 187, 267, 388

311, 574, 819, 1191

Reverse speed (rpm)

83, 251

Stroke of spindle (mm)

600

Max. lifting capacity (KN)

80

Max. torque of spindle (N.m)

2640

Max. feeding capacity (KN)

60

5. Windlass

TYPE

planetary gear drives

Hoist (Type: Planetary gearing transmission)

Steel Wire Cable Dia (mm)

17.5, 18.5

Max. lifting capacity (single line) (KN)

30

Power eng speed: 1500r/min

0.78, 1.44, 2.06, 2.99 m/s

Hoisting speed of wire rope

The engine is running at 1500 rpm (m/s)

0.82, 1.51, 2.16, 3.15

The engine is running at 2000 rpm (m/s)

1.09, 2.02, 2.89, 4.18

Wire rope diameter (mm)

16

Drum capacity (m)

90

Drum diameter (mm)

285

Brake pulley diameter (mm)

490

Brake width (mm)

120

6. Clutch

Type: Dry single chip friction clutch

7. Gearbox

Type: Sliding Gear Gearbox (4 positive speeds and 1 negative speed)

8. Oil Pump

Type: Single Gear Pump

9.Water Brake

Working Speed: 700-1800 rpm

Single Rope Compensational Speed: 3-8 m/s

Single Rope Compensational Load: 45 KN

10. Drill Frame

Type: Sliding Skids (with sliding base)

11. Backward Stroke (Mm)

460

12. Dimensions (L×W×H) (Mm)

2640×1100×1750

Characteristic

1. The rig is light in weight and easy to disassemble. Drill can be decomposed into nine integral parts, the largest part is only 218 kg, easy to move, suitable for mountain work.

2. Structure is simple layout is more reasonable, all components are exposed, do not overlap each other, easy to maintain, maintain and repair.

3. The rig has two reversing speeds, which makes it less labor-intensive and safe to deal with accidents.

4. The rig moves steadily, fixed firmly, the rig frame is firm, the center of gravity bottom, the high speed drilling stability is good.

5. Equipped with instrument, easy to grasp the situation inside the hole, less control handle, reasonable layout, flexible and reliable control.

Applications:

1. Engineering geological exploration.

2. Exploring the coal mine.

3. Survey and exploration of solid mineral deposit.

4. Water discharge tunnel.

5. Inspecting hole of various concrete structure.
