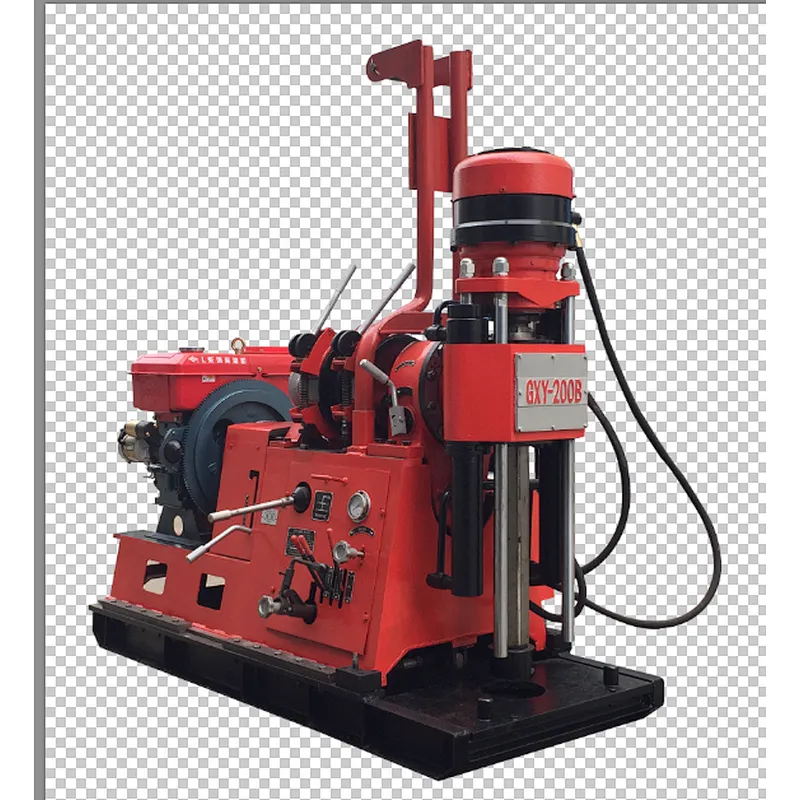

250 m Core Drilling Rig with Hydraulic Chuck
250 m Core Drilling Rig with Hydraulic Chuck

250 m Core Drilling Rig with Hydraulic Chuck

Model NO.
GXY-200B
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
200 set / Year
Country of Origin
CN
Stock Time
14 Days
Quantity:

Parameters

Basic parameter

Drilling depth (m)

0-250

Drilling diameter (mm)

φ42, φ50, φ60

Drilling rig inclination angle (°)

0-360

Dimension (L x W x H) (mm)

1860×780×1480

Weight (excluding power machine) (kg)

800

Gyrator

Active drill pipe (mm)

Hexagonal band slot 53×φ59×4500

Vertical spindle speed (r/min)

Engine speed

1460

1800

Forward low speed

43, 74,
117, 162

53, 92,
145, 200

Forward high speed

203, 352,
556, 768

250, 435,
668, 947

Reverse speed

33, 159

41, 196

Vertical stroke (m)

500

Maximum torque of vertical shaft (N.m)

2500

Maximum lifting force of vertical shaft (KN)

49

Additional pressure of vertical shaft (KN)

35

Hoist

Maximum lifting capacity (low speed single rope) (KN)

25

Drum rotational speed (r/min)

34, 59, 94, 129

Lifting speed of steel rope (single rope and single layer) (m/s)

0.38, 0.66, 1.05, 1.44

Wire rope specification (mm)

φ12.5

Rope capacity of drum (mm)

30

Mobile device

Moving cylinder stroke (mm)

465

Drilling rig distance from orifice (mm)

330

Oil pump

Oil pump specification

CB-FC16-FL

Rotational speed (r/min)

500-2500

Displacement (ml/r)

16

power plant

Y160L-4 motor

Power 15kw, speed 1460r/min

2100 diesel engine

Power 17.6kw, speed 1800r/min

ZS1115M diesel engine

Power 16.2kw, speed 2200r/min

Characteristics

1. The drilling rig is a lightweight multi-purpose engineering survey and construction drill developed by Wuxi Tongda Geological Prospecting Machinery Factory in Jiangsu Province.

2. It is equipped with a vertical shaft rotary type of mechanical transmission hydraulic feed to the vertical shaft.

3. The machine suits for civil architecture and industrial architecture, express way, railroad, abutment, damsite, water conservancy, well, go prospecting and other engineering geological investigation. At the same time, it applies to shallow oil and gas exploitation, ventilation and drainage of mine tunnel, construction of small caliber foundation pile holes and so on.

4. Diamond, cemented carbide, screw and other drill bits can be used for drilling in different layers.

5. It is compact in structure, light in weight, small in volume, good in detachable performance.

6. This kind of drilling rig is one of the rare ideal equipment to adapt to the new market requirements.

7. The rig has chosen a logical range of speed of rotation and the speed series has eight stages. The handles are centralized and the gearwheels lock each other.

8. The low speed and high pulling torque of the rig can be applied to the sampling, piling and boring of the drilling rig.

9. The machine has a two-gear reverse speed, which is convenient for the safe handling of faults.

10. The rotary chuck adopts manual ball chuck, which clamps firmly. The chuck does not damage the active drill pipe and can be inverted when not stopping.

11. The drilling rig is equipped with a hydraulic pressure feeding system, which is easy to operate. It has high drilling efficiency and low labor intensity.

12. The rig has sufficient instruments to help you master the situation inside the hole. It has fewer manipulator handles, reasonable layout, and flexible and reliable operation.

13. Because of its two-piece constant-closure friction clutch, the opening and the closing are flexible, adjustment and use are very commodious.

14. The machine is fitted with a forward and backward shifter cylinder. The clinostat which moves 465 mm backwards to facilitate the lifting of the boring tool.

15. The rig has the advantages of light-weight, tight configuration, convenient installation and demounting, which makes it appropriate for drilling in hills or mountains.

Advantage:

Wuxi Xikan Machinery Co. Ltd in response to the Belt and Road Initiative to built. Wuxi Tongda Geological Prospecting Machinery Factory is our company’s factory. We have experience in drilling rig production more than 20 years. We have developed core-drill machine, geologic exploration drilling rig, crawler drilling rig, mud pump and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
