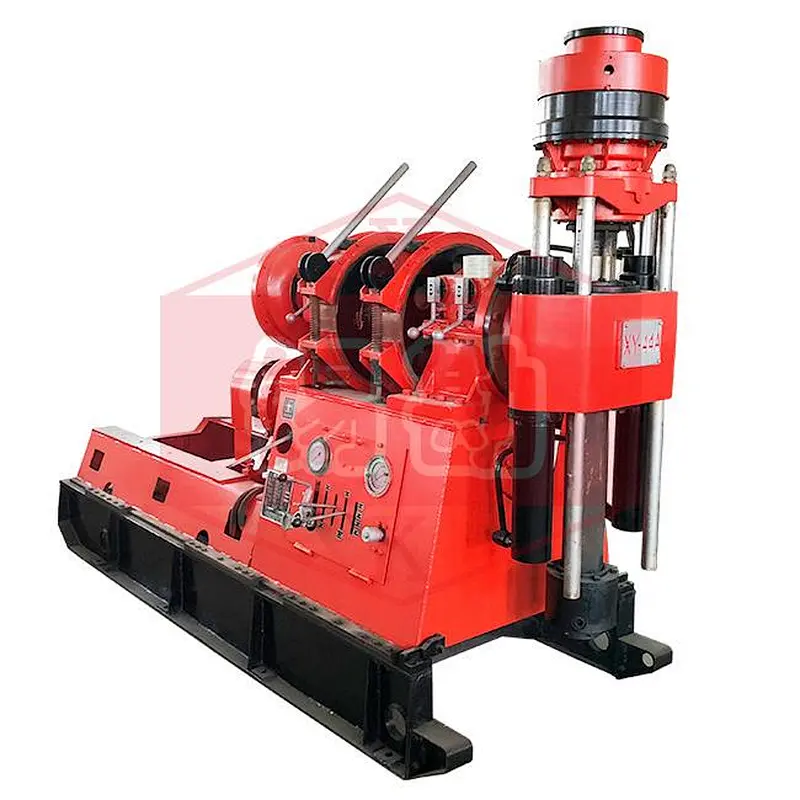

750-1400 m Core Drilling Rig
750-1400 m Core Drilling Rig

750-1400 m Core Drilling Rig

Model NO.
XY-44A
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
100 set / Year
Country of Origin
CN
Stock Time
21 Days
Quantity:

Parameters

1. Drilling Ability

(1) Core drilling

Model of drilling rod

Drill rod

Drill depth(m)

Drill Rod Made
in China

Planer in and out

φ43×6

1400

φ54×6

1000

φ67×6

830

Thickened Inner

φ50×5.5

1300

φ60×6

950

Wire-line drilling rod

φ55.5×4.75

1400

φ71×5

1000

φ89×5

800

DCDMA (Diamond Core Drill Manufacturer Association) made Drill Rod

Thickened Inner

BW

1250

NW

1000

HW

660

Core with

BQ

1400

Wire Line

NQ

1100

HQ

750

(2) Hydro-logic well drilling

Drill Specifications

Drilling diameter (mm)

Drill depth (m)

60 mm (outside thickening) drill pipe

200

800

73 mm (outside thickening) drill pipe

350

500

89 mm (outside thickening) drill pipe

500

300

(3) Boring of foundation pile

89 mm (outside thickening) drill pipe

Scall

1100

89 mm (outside thickening) drill pipe

Solid rock

600

Drilling depth (m)

100

2. Hole Angle (°)

0-360

3. Power Machine

Electric motor

Y225S-4

37kw

1480rpm

Diesel engine

YC4108ZD

50kw

1500rpm

4. Gyrator

Type

Double cylinder hydraulic feed mechanical rotary type

Spindle inner diameter (mm)

93

5. Vertical Spindle Speed

Forward speed (rpm)

83, 152, 217, 254

313, 468, 667, 970

Reverse speed (rpm)

67, 206

Stroke of spindle (mm)

600

Max. lifting capacity (KN)

120

Max. torque of spindle (N.m)

3200

Max. feeding capacity (KN)

90

6. Windlass

TYPE

planetary gear drives

Hoist (Type: Planetary gearing transmission)

Steel Wire Cable Dia (mm)

17.5, 18.5

Max. lifting capacity (single line) (KN)

45

Power eng speed :1500r/min

0.70, 1.29, 1.84, 2.68 m/s

Hoisting speed of wire rope

The engine is running at 1000 rpm (m/s)

0.47, 0.86, 1.22, 1.78

The engine is running at 1500 rpm (m/s)

0.70, 1.29, 1.84, 2.68

7. Clutch

Type: Dry single chip friction clutch

8. Gearbox

Type: Sliding Gear Gearbox (4 positive speeds and 1 negative speed)

9. Oil Pump

Type: Single Gear Pump

10. Water Brake

Working Speed: 700-1800 rpm

Single Rope Compensational Speed: 3-8 m/s

Single Rope Compensational Load: 45 KN

11. Drill Frame

Type: Sliding Skids (with sliding base)

12. Backward Stroke (Mm)

460

13. Dimensions (L×W×H) (Mm)

3042×1100×1920

Characteristic

1. XY-44a drilling rig is a new product designed on the basis of xy-42 and xy-44 drilling rigs. In addition to having the technical performance parameters of the above two types of drilling rigs, guide bar structure is added to the vertical section. The rig equipped with water brake and hand oil pump.

2. The drilling rig is used for core drilling with alloy and diamond drilling, as well as engineering geological exploration, hydro-logic well drilling and construction of large diameter foundation pile. This product not only sells all over the country, but also exports to southeast Asia, Africa, America and European countries.

3. The drilling rig has many speed series (grade 8) and reasonable speed range, with large torque (up to 3200 N.m) and low speed. The drilling rig is not only suitable for alloy drilling and diamond core drilling, but also suitable for engineering geological investigation, hydrologic well drilling and foundation pile construction.

4. Vertical shaft through hole diameter is large (diameter of 93 mm). It has double shaft cylinder hydraulic feed and the stroke is long (up to 600 mm). The process adaptability is strong, especially suitable for large diameter drill pipe rope coring (upper coring) drilling. This kind of design is conducive to improve drilling efficiency and reduce accidents in the hole.

5. The drill with 71mm diameter rope coring pipe has large drilling capacity. The rated drilling depth of the drill can reach 1000 meters.

6. The drill has light weight and good dis-mountable. The net weight of drilling rig is 2300 kg .The main engine can be decomposed into 10 parts (maximum part weight is 300 kg).Relocation is convenient and suitable for mountain work.

Advantages

1. Low cost: We have a professional team with technical knowledge and managerial experience. Our company has advanced equipment for manufacturing. By virtue of perfect managerial system and excellent quality, so we can always keep the price competitive and reasonable.

2. Make small profits but quick turnover: Our company has strong strength, good credit, abide by contracts to ensure product quality. With its multi-variety management characteristics and the principle of small profits and high turnover, we have won the trust of customers and continuous sales growth for 10 years Welcome new and old customers at home and abroad to call for consultation and negotiation.

3. Best Service: Customer satisfaction is always the focus of “Xikan” machinery. We are eager to solve any problems. Be sure to answer questions, help when you are busy and answer when you are asked.
