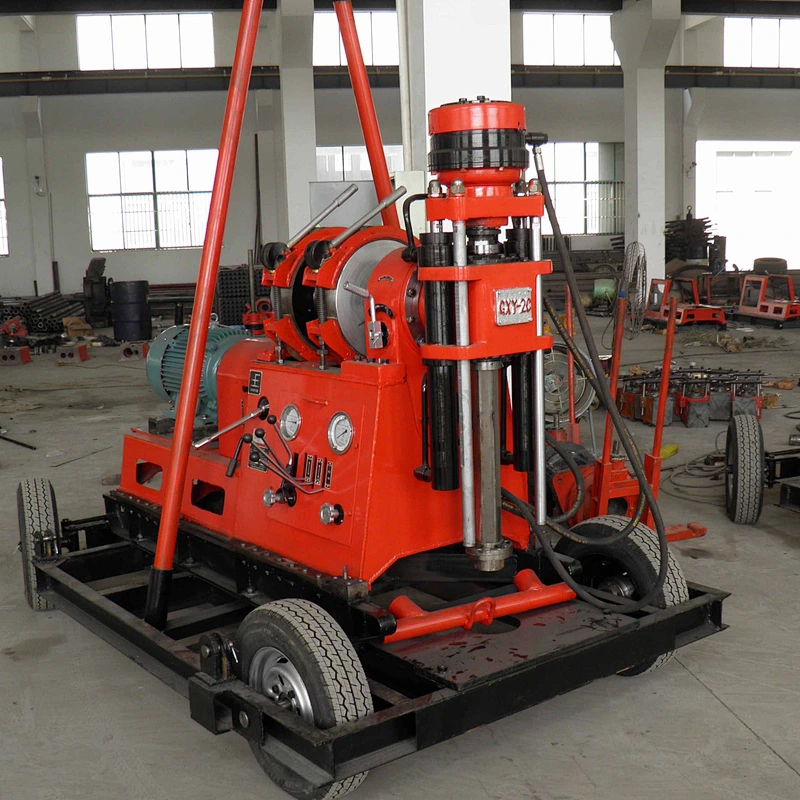

200-300 m Hydraulic Core Drilling Rig
200-300 m Hydraulic Core Drilling Rig

200-300 m Hydraulic Core Drilling Rig

Model NO.
GXY-2C
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
200 set / Year
Country of Origin
CN
Stock Time
14 Days
Quantity:

Parameters

1. Core Drilling

Hole depth (m)

200-300

Hole diameter (mm)

46

Drill pipe diameter (mm)

42, 50

Drilling angle (°)

0-90

Dimensions (mm)

2120×830×1560

Weight (excluding power) (kg)

1000

2. Gyrator

Engine speed (r/min)

1470

1800

Forward low speed

56, 97, 153, 211

69, 119, 188, 259

Forward high speed

264, 458, 722, 996

323, 560, 884, 1220

Reverse speed

44, 206

54, 253

Spindle stroke (mm)

500

Maximum feed pressure (KN)

35

Maximum lifting capacity (KN)

25

Maximum upward movement speed without load (m/s)

0.05

Maximum downward movement speed without load (m/s)

0.067

Maximum output torque (KN.m)

2.2

3. Windlass

Maximum pulling capacity (KN)

17

Drum speed (r/min)

37, 65, 103, 141

Drum diameter (mm)

140

Circular velocity of drum (m/s)

0.41, 0.73, 1.15, 1.58

Diameter of wire line (mm)

10

Coiling length (m)

35

The brake diameter (mm)

252

The brake band width (mm)

50

4. Power Machine

Diesel engine

s1115

Rated power (kw)

16.2

Rated speed (r/min)

2200

Electromotor

Y160M-4

Rated power (kw)

15

Rated speed (r/min)

1460

5. Oil Pump

Model number

YBC-12/80

Rated pressure (MPa)

8

Rated speed (r/min)

1500

Flow (L/min)

32

Pressure (MPa)

12

Characteristic

1. The rig has a two reverse speed, which facilitates handle faults safely.

2. Automatic centering hydraulic chuck is adopted, which is convenient to clamp and loosen drill pipe. And has the oil pressure to feed the mechanism, the pressure and the lifting ability is strong.

3. Equipped with enough instrument, it is helpful to observe the situation inside the hole, less operation handle, reasonable layout, flexible and reliable operation.

4. The drilling rig uses double-disc normally closed friction clutch is adopted, which is flexible in opening and closing, and easy to adjust and use.

5. The drilling rig is light in weight, compact in structure, easy to disassemble and assemble, and can be used for drilling in hilly or mountainous areas.

Advantages

1. We can customize special hardware as customer demand.

2. Technical service for assembling.

3. Variety types for selection, prompt deliver.

4. Well-equipped with extensive sales network.

5. Advanced Production equipment and production technique.

6. Competitive Price (Factory direct price) with our good service.

7. Different designs are available according to customer requests.

8. Excellent quality testing equipment, 100% inspection on critical.
