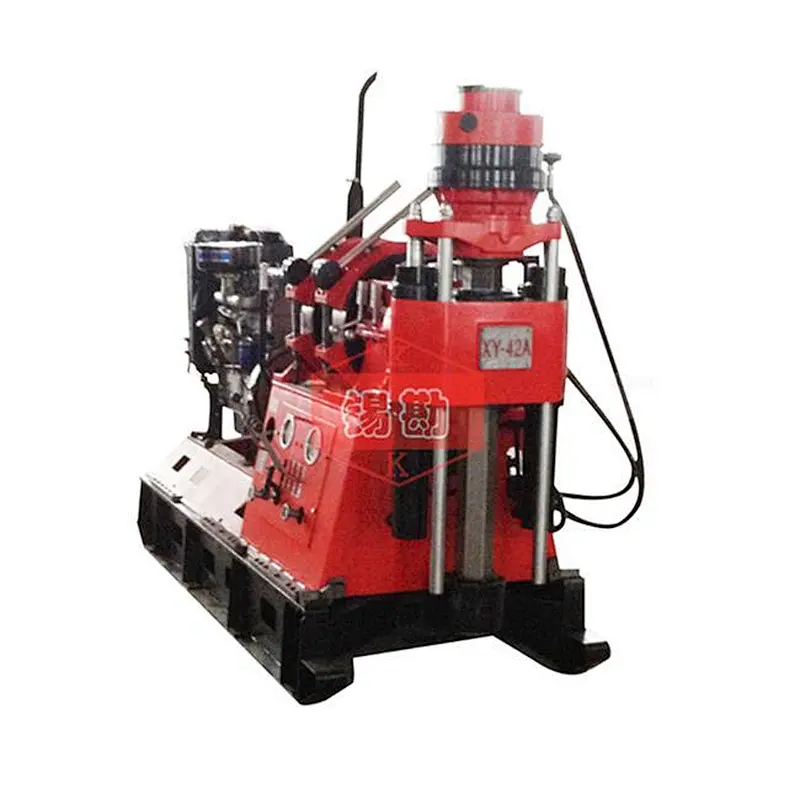

500-1100 m Core Drilling Rig
500-1100 m Core Drilling Rig

500-1100 m Core Drilling Rig

Model NO.
XY-42A
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
100 set / Year
Country of Origin
CN
Stock Time
21 Days
Quantity:

Parameters

1. Drilling Ability

(1) Core drilling

Model of drilling rod

Drill rod

Drill depth(m)

Drill Rod Made
in China

Conventional drill pipe

φ46×6

920

φ54×6

700

φ67×6

600

Thickened Inner

φ42

1100

φ50

820

φ60

610

Wire-line drilling rod

φ53

950

φ71

700

φ89

550

DCDMA (Diamond Core Drill Manufacturer Association) made Drill Rod

Thickened Inner

AW

1100

BW

820

NW

650

HW

430

Core with

AQ

1200

BQ

950

NQ

730

HQ

500

(2) Hydro-logic well drilling

Drill Specifications

Drilling diameter (mm)

Drill depth (m)

60 mm (outside thickening) drill pipe

200

400

73 mm (outside thickening) drill pipe

350

250

89 mm (outside thickening) drill pipe

500

150

(3) Boring of foundation pile

89 mm (outside thickening) drill pipe

Scall

800

89 mm (outside thickening) drill pipe

Solid rock

500

Drilling depth (m)

100

2. Hole Angle (°)

0-360

3. Power Machine

Electric motor

Y225S-4

37kw

1480rpm

Diesel engine

YC4108ZD

50kw

1500rpm

4. Gyrator

Type

Double cylinder hydraulic feed mechanical rotary type

Spindle inner diameter (mm)

93

Vertical spindle speed

Forward speed (rpm)

82, 151, 215, 254

313, 463, 661, 961

Reverse speed (rpm)

67, 205

Stroke of spindle (mm)

600

Max. lifting capacity (KN)

80

Max. torque of spindle (N.m)

3200

Max. feeding capacity (KN)

60

5. Windlass

TYPE

planetary gear drives

Hoist (Type: Planetary gearing transmission)

Steel Wire Cable Dia (mm)

17.5, 18.5

Max. lifting capacity (single line) (KN)

30

Power eng speed :1500r/min

0.78, 1.44, 2.06, 2.99 m/s

Hoisting speed of wire rope

The engine is running at 1000 rpm (m/s)

0.47, 0.86, 1.22, 1.78

The engine is running at 1500 rpm (m/s)

0.70, 1.29, 1.84, 2.68

Wire rope diameter (mm)

16

Drum capacity (m)

90

Drum diameter (mm)

285

Brake pulley diameter (mm)

490

Brake width (mm)

120

6. Clutch

Type: Dry single chip friction clutch

7. Gearbox

Type: Sliding Gear Gearbox (4 positive speeds and 1 negative speed)

8. Oil Pump

Type: Single Gear Pump

9.Water Brake

Working Speed: 700-1800 rpm

Single Rope Compensational Speed: 3-8 m/s

Single Rope Compensational Load: 45 KN

10. Drill Frame

Type: Sliding Skids (with sliding base)

11. Backward Stroke (Mm)

460

12. Dimensions (L×W×H) (Mm)

2730×1100×1860

Characteristic

1. The drilling rig has many speed series (level 8) and reasonable speed range, low speed torque (Max. 3500 Newton · m), which is not only suitable for drilling alloy and diamond core, but also suitable for engineering geological investigation, hydrologic well drilling and foundation pile construction.

2. Vertical shaft hole diameter is large (93 mm), double cylinder hydraulic feeding process is long (600 mm), can adapt to a variety of drilling technology, is conducive to improve drilling efficiency.

3. The drilling rig has two gears reversing speed, which is convenient to deal with accidents。

4. The drilling rig’s oil is supplied by single gear pump.

5. The unidirectional hydraulic chuck is adopted in the drilling machine, which guarantees the chuck with larger clamping force.

6. The rig is light in weight and easy to disassemble. The whole machine can be decomposed into nine integral parts, easy to move, suitable for mountain work.

Advantage

1. Factory outlets

2. Easy to install

3. Durable, applied and secure

4. We have a variety of core drilling rig, exploration rig, mud pump for your choice

5. We can customize the color according to your requirements
