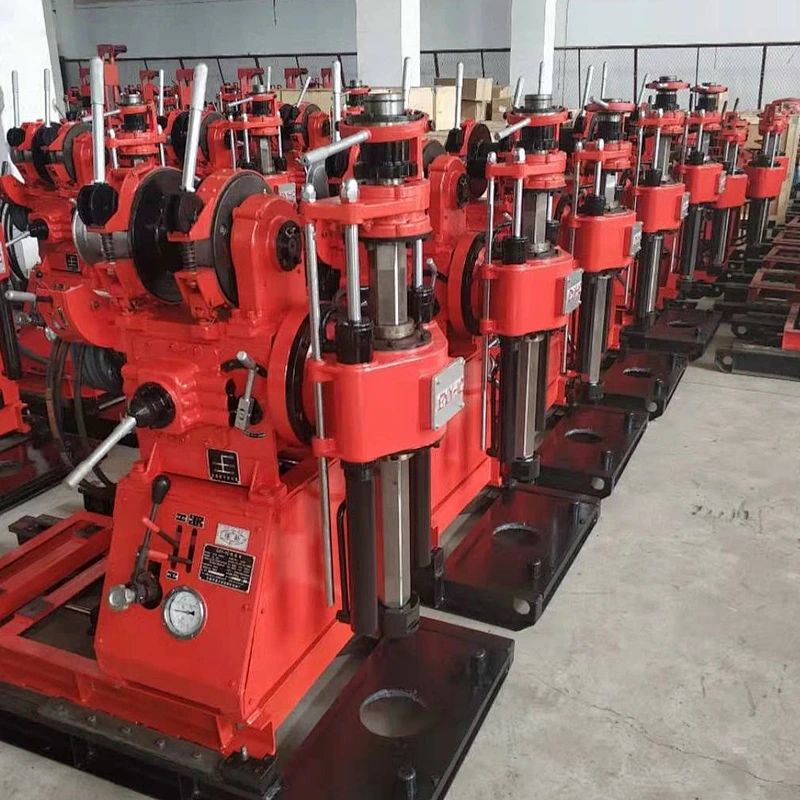

150 M Engineering Exploration Core Drilling Rig
150 M Engineering Exploration Core Drilling Rig

150 M Engineering Exploration Core Drilling Rig

Model NO.
GXY-1C
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
200 set / Year
Country of Origin
CN
Stock Time
14 Days
Quantity:

Parameters

Drilling diameter (mm)

76, 46

Drilling depth (m)

160, 200

Output speed of power head (r/min)

Positive: 93-1010 (4th gear)

Counter: 52

Stroke (mm)

500

Maximum added pressure (KN)

15

Maximum lifting force (KN)

25

Rig holding shackle

Hydraulic chuck

Way to make way for orifice

Power head hydraulically controlled backward moving

Hoist lifting capacity (KN)

15

Lifting speed (m/s)

0.22, 0.95, 1.95, 5.3

Diesel engine model and power (kw)

S1100M, 11

Motor model and power (kw)

Y160M-4, 11

Dimension (L x W x H) (mm)

1800×1200×1500

Weight (kg)

650

Characteristics

1. The drilling rig is suitable for engineering geological investigation, general exploration of solid deposits, blasting holes and inspection holes for a variety of concrete structures.

2. According to the different strata, we can choose carbide bit and spiral diamond bit to drill.

3. It has many peculiarities such as compact configuration, big output power and good drilling ability.

4. The rig is fitted with oil pressure into the mechanism.

5. The machine uses ball card type of structure.

6. A hydraulic shifter unit is equipped to give the orifice the right of way so as to improve the working efficiency.

7. For hard and thick stratum, the high-speed type is selected for diamond boring.

8. It can be fitted with a towing structure or loaded on a crawler chassis for enhanced maneuverability.

9. The rig has the advantages of compact size, small volume, light weight and dismounting convenience.

10. The drill is suitable for hilly and mountainous areas.

Advantages

1. Rich production experience: We specialize in the production of core drills, mud pumps and core barrels, with 20 years of experience.

2. Production equipment: Our company has advanced equipment such as precision grinder, straightener, precision polishing machine, precision lathe, milling machine, drilling machine and roller press. Our technicians maintain these machines regularly to ensure that they work properly.

3. High-quality raw materials: We mainly choose raw materials from large steel mills such as TPCO, BAO STEEL, SHA STEEL, which are the best and largest raw material manufacturers in China.

4. Short delivery time.

5. Best after-sale service: Over 60% products are sold to the Southeast Asia, Middle East and Africa. All products are trusted by domestic and foreign customers.
