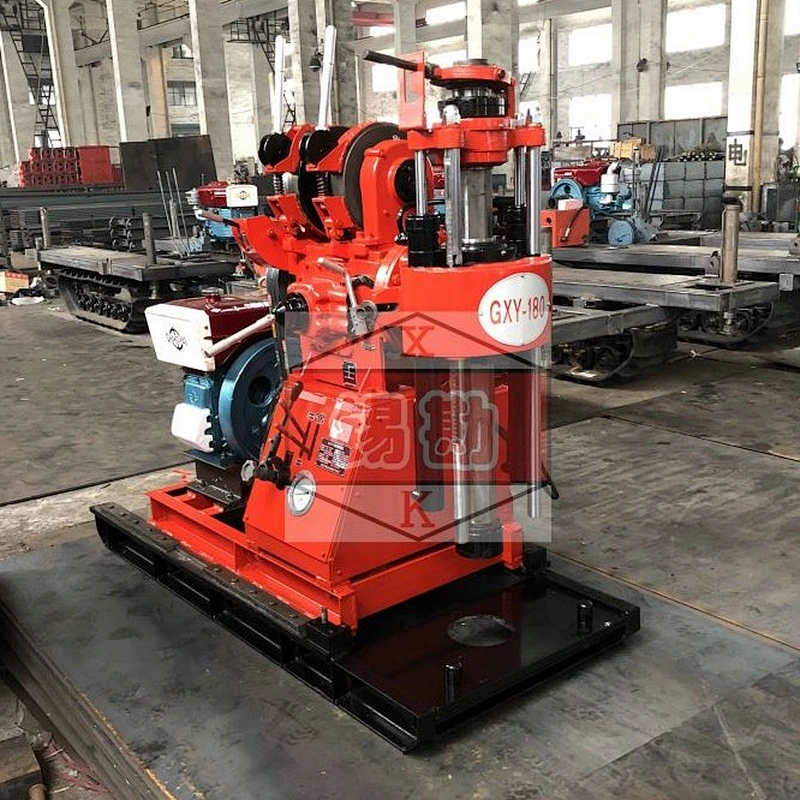

GXY-180 Core Drilling Machine
GXY-180 Core Drilling Machine

GXY-180 Core Drilling Machine

Model NO.
GXY-180
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
200 set / Year
Country of Origin
CN
Stock Time
14 Days
Quantity:

Characteristic

1.GXY-180 drilling rig is a vertical shaft type portable drilling rig produced by Wuxi Tongda Geological Prospecting Machinery Factory in Jiangsu Province according to the needs of users.

2.  The machine is suitable for engineering geological investigation, general exploration of solid deposits, blasting holes and inspection holes for a variety of concrete structures.

3. According to different strata, diamond, cemented carbide, steel sand and screw bits can be used for drilling.

4.  The opening diameter is 150 mm. When the final hole is 75 mm in diameter, the depth of the hole can be up to 180 m.

5.  The drilling rig has an oil pressure feeding mechanism and is equipped with ball chuck structure.

Parameters

Basic parameter

Drilling depth (m)

180

Opening hole diameter (mm)

150

Final hole diameter (mm)

75

Drill pipe diameter (mm)

43

Drilling rig inclination angle (°)

360 (reference)

Dimension (L x W x H) (mm)

1450 x 970 x 1280

Weight (Not including engine) (kg)

Net weight 500

Gyrator

Vertical shaft speed (r/min)

Forward speed 90, 246, 507, 981

Reverse speed 68



Vertical stroke (mm)

500

Maximum feed pressure of vertical shaft (KN)

20

Maximum pull-out force of vertical shaft (KN)

25

Maximum torque of vertical shaft (KN.m)

1.2

Hoist

Maximum lifting capacity (KN)

(low speed single rope) 15

Drum rotational speed (r/min)

31, 84, 173, 335

Hoisting speed of winch (m/s)

0.23, 0.63, 1.31, 2.52

Wire rope diameter (mm)

9.3

Wire rope capacity (m)

35

Oil pump

Type

Gear pump

Model

CB-FC10L

Rated working pressure (MPa)

16

Displacement (ml/r)

10

Rated pressure (MPa)

500-2500

Power

Diesel engine model

S1100M

Diesel engine power

11kw/2200r/min

Motor model

Y160M-4

Motor power

11kw/1440r/min

Drilling tower

Drilling tower height (m)

6.5

Drilling tower rated load (KN)

30
