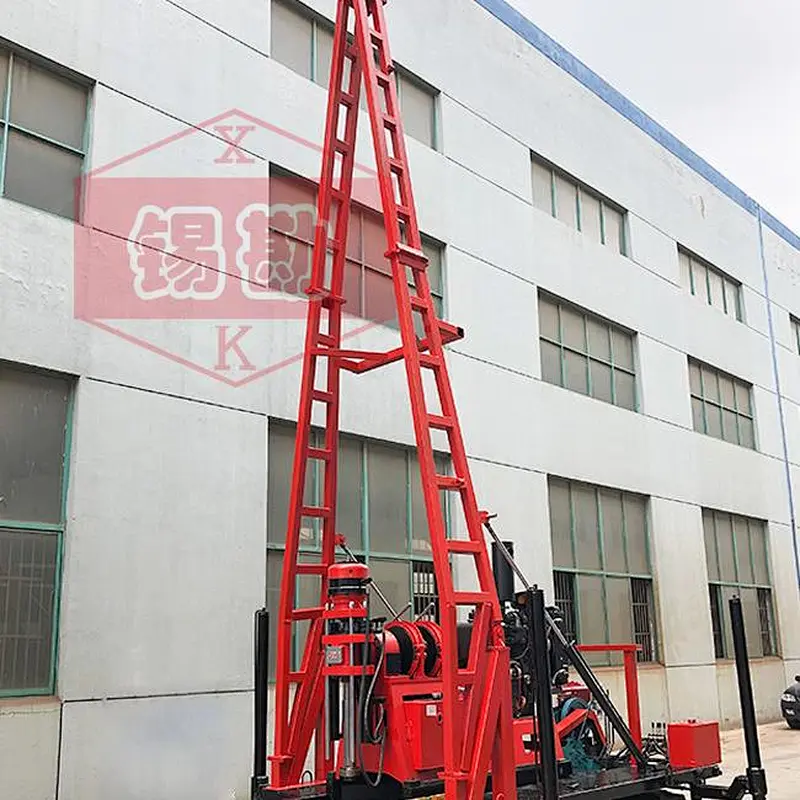

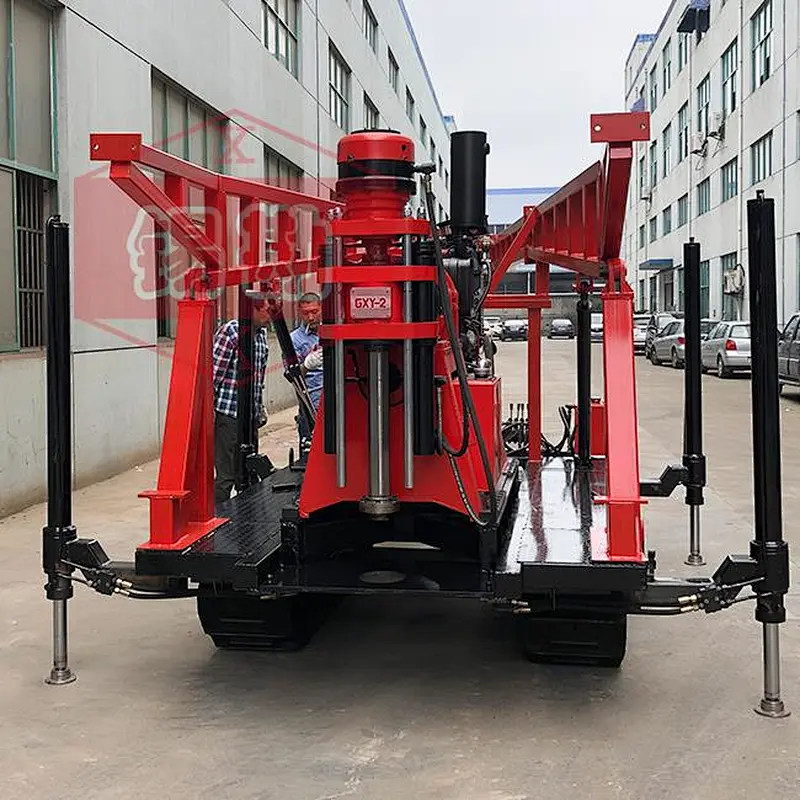

1.5m Long Cylinder Crawler Drilling Rig
1.5m Long Cylinder Crawler Drilling Rig
1.5m Long Cylinder Crawler Drilling Rig
1.5m Long Cylinder Crawler Drilling Rig
1.5m Long Cylinder Crawler Drilling Rig

1.5m Long Cylinder Crawler Drilling Rig

Model NO.
Crawler Drilling Rig
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
100 set / Year
Country of Origin
CN
Stock Time
21 Days
Quantity:

Parameters

ZD-56 rubber tracked chassis

Specifications

Theoretical forward speed(km/h)

0.9,2.0,2.7,3.2,8.3,13

Reverse speed(km/h)

0.9,2.1

The rated load(T)

5.0

The rated climbing degree(°)

Uphill35,Downhill35

Minimum ground clearance(mm)

>200

Pitch(mm)

90

Shaft center distance(mm)

198 0

Drive wheel base(mm)

1100

Grounding length(mm)

1300

Ground pressure(kPa)

<35

Dimensional(mm)

2500 x 1600 x 600

Characteristic

1. Rubber crawler chassis, power (diesel engine or motor), drilling rig, drilling rig platform, hydraulic support leg system, automatic telescopic hydraulic landing gear, water pump and so on are assembled in one frame.

2. The drilling rig has a power (diesel or motor) , the rubber crawler chassis and the mud pump has a power (diesel or motor) .They are non-interference, avoid the wear and tear of single power transformation load.

3. It is widely used in engineering geological investigation, geological core drilling, physical investigation, small grouting hole, blasting hole, well hole and air conditioning hole of highway, railway, hydro-power, bridge, dam foundation etc.

4. The rig is one of the ideal equipment to meet the needs of the new market.Can be in the beach, riverbank, sand, paddy fields and other harsh environment to carry out static exploration operations, icy roads can still walk.

Advantages

1. Rich production experience: We specialize in the production of core drills, mud pumps and core barrels, with 20 years of experience.

2. Production equipment: Our company has advanced equipment such as precision grinder, straightener, precision polishing machine, precision lathe, milling machine, drilling machine and roller press. Our technicians maintain these machines regularly to ensure that they work properly.

3. High-quality raw materials: We mainly choose raw materials from large steel mills such as TPCO, BAO STEEL, SHA STEEL, which are the best and largest raw material manufacturers in China.

4. Short delivery time.

5. Best after-sale service: Over 60% products are sold to the Southeast Asia, Middle East and Africa. All products are trusted by domestic and foreign customers.
